OEM Style, Compact Pressure Transmitters

PX119

Low cost stainless steel pressure transducer | Small for Air Pressure | PX119

¥22,035 PX119-100GI

1 year warranty CE
  • Compact and affordable for OEM applications
  • Easily configurable, now with expanded options
  • Reliable outputs with signal conditioning
  • Durable, stainless steel housing resists corrosion in harsh industrial environments
圧力センサ (圧力変換器) - 関連する商品を探す
(見つからない場合はカスタマーサービスにご連絡ください)

商品説明

Pressure Without the Pain

Ideally suited for material handling, industrial and mobile equipment applications where a small, yet rugged SS body size is desired at a reasonable price point. The body is machined from a single piece of stainless steel to provide added protection for the internal electronics as well as prevent corrosion from most applications. A piezoresistive ceramic sensor along with ASIC signal conditioning provides an excellent thermally compensated output.

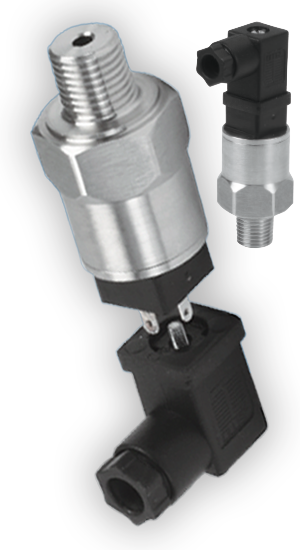

PX119 Low Cost SS Compact Pressure Transmitter
  • SIMPLE
  • MULTIPURPOSE
  • COMPACT
Monitor air brake pressureMonitor air brake pressure
Monitor pressure/height in vehicle suspension
Regulate pneumatic door operation
Monitor excessive load
Monitor lift operation
Monitor compact pressure
Monitor lift operation
  • Great cost: performance ratio
    Accuracy: 0.5% BFSL
  • Large pressure range
    15 to 5000 psi (absolute or gauge)
  • Piezoresistive ceramic diaphragm
    Excellent thermally compensated output
    Operating temp: -40 to 135°C (32 to 185°F)
  • Reliable output with signal conditioning
    Output: 4 to 20 mA or 0 to 5 VDC
    Input: 8 to 30 Vdc
    Response time: 1 ms
  • Rugged form factor
    Shock and vibration resistant
    10g for <58 psi/20g for >58 psi
  • Resists corrosion and water
    304 SS body
    Wetted materials: Ceramic AI2O3, NBR
注文する (部品番号ビルダーより掲載以外の製品もご選択いただけます)(注文数を入力の上、"カートに追加"をクリックしてください)

他のお客様はこのような商品も購入しています。: このアイコンをクリックすると、このモデルを購入した他のお客様の購入商品リストが表示されます.

部品番号/Desc.
注文数
商品説明
Absolute Pressure, 1/4 NPT process connection, mini DIN connector, 4-20 mA output
Click to expand/minimize a list of what others bought with thePX119-015AI
PX119-015AI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 15 psia, 0 to 1 bar
Click to expand/minimize a list of what others bought with thePX119-030AI
PX119-030AI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 30 psia, 0 to 2.1 bar
Click to expand/minimize a list of what others bought with thePX119-100AI
PX119-100AI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 100 psia, 0 to 6.9 bar
Click to expand/minimize a list of what others bought with thePX119-150AI
PX119-150AI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 150 psia, 0 to 10.3 bar
Click to expand/minimize a list of what others bought with thePX119-300AI
PX119-300AI
¥25,343 (税込)
(税抜価格 ¥23,039)
納期: 2 週間

0 to 300 psia, 0 to 21 bar
Click to expand/minimize a list of what others bought with thePX119-600AI
PX119-600AI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 600 psia, 0 to 42 bar

PX119-1KAI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 1000 psia, 0 to 69 bar

PX119-1.5KAI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 1500 psia, 0 to 103 bar

PX119-3KAI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 3000 psia, 0 to 207 bar

PX119-5KAI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 5000 psia, 0 to 345 bar
Gage Pressure, 1/4 NPT process connection, mini DIN connector, 4-20 mA output

PX119-015GI
¥25,343 (税込)
(税抜価格 ¥23,039)
納期: 2 週間

0 to 15 psig, 0 to 1 bar
Click to expand/minimize a list of what others bought with thePX119-030GI
PX119-030GI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 30 psig, 0 to 2.1 bar
Click to expand/minimize a list of what others bought with thePX119-100GI
PX119-100GI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 100 psig, 0 to 6.9 bar

PX119-150GI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 6 週間

0 to 150 psig, 0 to 10.3 bar
Click to expand/minimize a list of what others bought with thePX119-300GI
PX119-300GI
¥25,343 (税込)
(税抜価格 ¥23,039)
納期: 3 週間

0 to 300 psig, 0 to 21 bar
Click to expand/minimize a list of what others bought with thePX119-600GI
PX119-600GI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 3 週間

0 to 600 psig, 0 to 42 bar

PX119-1KGI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 1000 psig, 0 to 69 bar

PX119-1.5KGI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 1500 psig, 0 to 103 bar

PX119-3KGI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 3 週間

0 to 3000 psig, 0 to 207 bar

PX119-5KGI
¥24,239 (税込)
(税抜価格 ¥22,035)
納期: 2 週間

0 to 5000 psig, 0 to 345 bar

PX109A-1KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-1KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-1KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-1KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-1KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-1KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-100A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-100A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-100A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-100G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-100G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-100G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-100GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-100GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-100GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-015A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-015A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-015A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-015AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-015AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-015AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-015G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-015G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-015G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-015GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-015GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-015GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-150GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 150 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-150GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 150 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-150GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 150 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-200G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-200G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-200G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-200GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-200GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-200GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-2KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-2KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-2KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-2KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-2KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-2KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-3KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-3KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-3KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-3KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-3KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-3KGI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-030A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-030A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-030A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-030AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-030AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-030AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-030G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-030G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-030G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-030GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-030GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-030GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-300G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-300G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-300G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-300GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-300GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-300GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-500G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-500G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-500G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-500GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-500GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-500GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-050A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-050A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-050A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-050AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-050AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-050AI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109A-050G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Cable Connection

PX119A-050G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-050G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/8"NPT Male, M12 Connection

PX109A-050GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Cable Connection

PX119A-050GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, Mini DIN 43650 C Connection

PX159A-050GI
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 4 to 20 mA Output, 1/8"NPT Male, M12 Connection

PX109-1KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-1KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 1,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-100A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-100A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-100G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-100G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 100 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-015A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-015A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-015G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-015G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 15 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-200G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-200G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 200 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-2KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-2KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 2000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-3KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-3KG5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 3,000 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-030A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-030A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-030G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-030G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 30 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-300G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-300G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 300 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-500G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-500G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 3 週間

0 to 500 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-050A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-050A5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Absolute Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection

PX109-050G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, Cable Connection

PX159-050G5V
¥27,874 (税込)
(税抜価格 ¥25,340)
納期: 10 週間

0 to 60 psi, Gauge Pressure, 0 to 5 Vdc Output, 1/4"NPT Male, M12 Connection
Accessories
Click to expand/minimize a list of what others bought with theCA-319-4PC24-010
CA-319-4PC24-010
¥17,507 (税込)
(税抜価格 ¥15,915)
納期: 7 週間

10 ft cable for PX119 >100 psig and all absolute ranges, terminated in a dry location or sealed to prevent water from getting into the cable/sensor*
Click to expand/minimize a list of what others bought with theCA-319-4PC24-010-WP
CA-319-4PC24-010-WP
¥26,132 (税込)
(税抜価格 ¥23,756)
納期: 2 週間

10 ft Vented cable used for PX119 <=100 psig, terminated in a clean dry area that is open to atmosphere for correct operation*

DP8PT
¥51,267 (税込)
(税抜価格 ¥46,606)
納期: 4 週間

PLATINUM™ Series 1/8 DIN 4-digit single display process meter, scalable and supplies excitation to PX119.

CX5300
¥3,933 (税込)
(税抜価格 ¥3,575)
納期: 2 週間

Extra Mating Connector (supplied with 1)
注: Comes with mating 20mm DIN Connector
Ordering Example: (1) PX119-100GI 0 to 100 psig, 0 to 6.9 bar, 1/4 NPT Male termination, mini DIN, 4 to 20 mA output., ¥22,035
We noticed you are from the US. Visit your local site for regional offers and live support.
