NEMA Type 12 Steel Sloping Front Pushbutton Enclosures for 22mm & 30.5mm Push Buttons

SCE-PBA Series Sloping Pushbutton Enclosures

^¥62,254 SCE-6PBA

注文する

0.075" Carbon Steel
Continuously Welded Seams
Captivated Cover Screws Thread Into Sealed Wells
4-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
Oil-Resistant Gasket
NEMA 12/13 Environmental Rating

NEMA規格筐体 - 関連する商品を探す
（見つからない場合はカスタマーサービスにご連絡ください）

商品説明

Application
Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

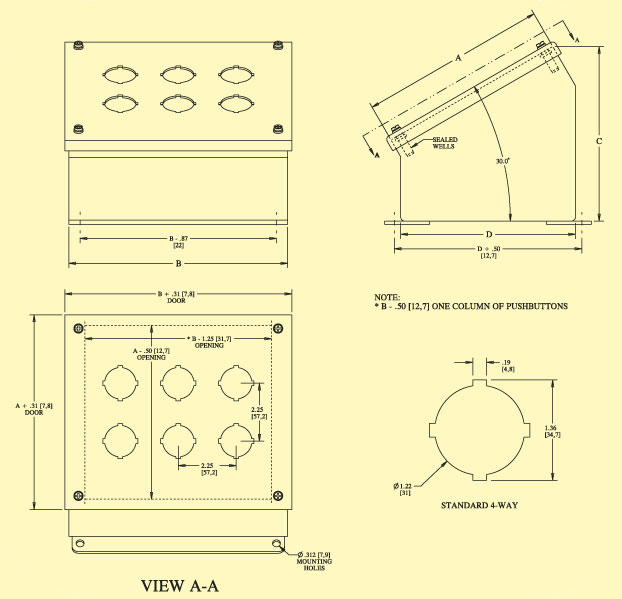

SCE_PBA Series Dimension Diagrams

注文する（部品番号ビルダーより掲載以外の製品もご選択いただけます）(注文数を入力の上、"カートに追加"をクリックしてください)

部品番号/Desc.

注文数

商品説明

NEMA Type 12 Front Sloping Pushbutton Enclosures for 30.5mm Pushbuttons

SCE-1PBA

¥39,752 (税込)
(税抜価格 ¥36,138)

納期: 4 週間

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53

SCE-2PBA

¥46,207 (税込)
(税抜価格 ¥42,006)

納期: 4 週間

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53

SCE-3PBA

¥52,637 (税込)
(税抜価格 ¥47,852)

納期: 4 週間

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53

SCE-4PBA

¥59,348 (税込)
(税抜価格 ¥53,952)

納期: 4 週間

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53

SCE-4SPBA

¥62,607 (税込)
(税抜価格 ¥56,916)

納期: 4 週間

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78

SCE-6PBA

¥68,479 (税込)
(税抜価格 ¥62,254)

納期: 4 週間

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78

SCE-8PBA

¥86,700 (税込)
(税抜価格 ¥78,818)

納期: 4 週間

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78

SCE-9PBA

¥90,317 (税込)
(税抜価格 ¥82,107)

納期: 4 週間

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73

SCE-10PBA

¥95,994 (税込)
(税抜価格 ¥87,267)

納期: 4 週間

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78

SCE-12PBA

¥104,762 (税込)
(税抜価格 ¥95,238)

納期: 4 週間

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78

SCE-12SPBA

¥94,233 (税込)
(税抜価格 ¥85,667)

納期: 4 週間

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69

SCE-16PBA

¥111,981 (税込)
(税抜価格 ¥101,801)

納期: 4 週間

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

NEMA Type 12 Front Sloping Pushbutton Enclosures for 22mm Pushbuttons

SCE-1PBAI

¥39,752 (税込)
(税抜価格 ¥36,138)

納期: 4 週間

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53

SCE-2PBAI

¥41,142 (税込)
(税抜価格 ¥37,402)

納期: 4 週間

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53

SCE-3PBAI

¥49,544 (税込)
(税抜価格 ¥45,040)

納期: 6 週間

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53

SCE-4PBAI

¥59,348 (税込)
(税抜価格 ¥53,952)

納期: 4 週間

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53

SCE-4SPBAI

¥56,902 (税込)
(税抜価格 ¥51,729)

納期: 6 週間

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78

SCE-6PBAI

¥66,753 (税込)
(税抜価格 ¥60,684)

納期: 4 週間

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78

SCE-8PBAI

¥82,827 (税込)
(税抜価格 ¥75,297)

納期: 6 週間

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78

SCE-9PBAI

¥90,317 (税込)
(税抜価格 ¥82,107)

納期: 2 週間

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73

SCE-10PBAI

¥90,347 (税込)
(税抜価格 ¥82,134)

納期: 6 週間

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78

SCE-12PBAI

¥98,604 (税込)
(税抜価格 ¥89,640)

納期: 4 週間

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78

SCE-12SPBAI

¥100,124 (税込)
(税抜価格 ¥91,022)

納期: 5 週間

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69

SCE-16PBAI

¥111,981 (税込)
(税抜価格 ¥101,801)

納期: 4 週間

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

Base and Column Accessories

SCE-18SBASE

¥61,647 (税込)
(税抜価格 ¥56,043)

納期: 4 週間

Pedestal Base 18.00 x 18.00 x 1.00

SCE-24SBASE

¥125,727 (税込)
(税抜価格 ¥114,297)

納期: 4 週間

Pedestal Base 24.00 x 24.00 x 1.00

SCE-44CCOL

¥98,317 (税込)
(税抜価格 ¥89,379)

納期: 4 週間

Straight Column 4.00 x 4.00 x 35.00

SCE-44PBCOL

¥127,400 (税込)
(税抜価格 ¥115,818)

納期: 4 週間

Angled Column 4.00 x 4.00 x 35.00

SCE-66CCOL

¥160,550 (税込)
(税抜価格 ¥145,954)

納期: 4 週間

Straight Column 6.00 x 6.00 x 35.00

SCE-66PBCOL

¥192,144 (税込)
(税抜価格 ¥174,677)

納期: 4 週間

Angled Column 6.00 x 6.00 x 35.0

OMPBD7-AHA1

¥10,478 (税込)
(税抜価格 ¥9,525)

納期: 2 週間

30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel

POWER CORD-SE-M16

¥4,362 (税込)
(税抜価格 ¥3,965)

納期: 2 週間

8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max.

Ordering Example: (1) SCE - 1PBA Type 12 Sloping Front 30.5mm Pushbutton Enclosure, ¥36,138
