NEMA Type 12 Large Continuous Hinge Enclosures Discontinued

SCE Series ALP/BLP

NEMA Type 12 Large Continuous Hinge Enclosures

スクロールダウンし、全ラインアップをご覧ください

注文する

0.075" Carbon Steel
Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
Continuous Hinge
Rivnut/Screw Fastened Cover
Oil Resistant Gasket
Studs for Mounting Optional Panels
Ground Stud on Door
Removable Print Pocket Furnished if Height and Width of Enclosure is 24" or More

商品説明

This enclosure series has been discontinued. Please see the SCE-LP as a possible alternative or contact our Automation Engineering department.

Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

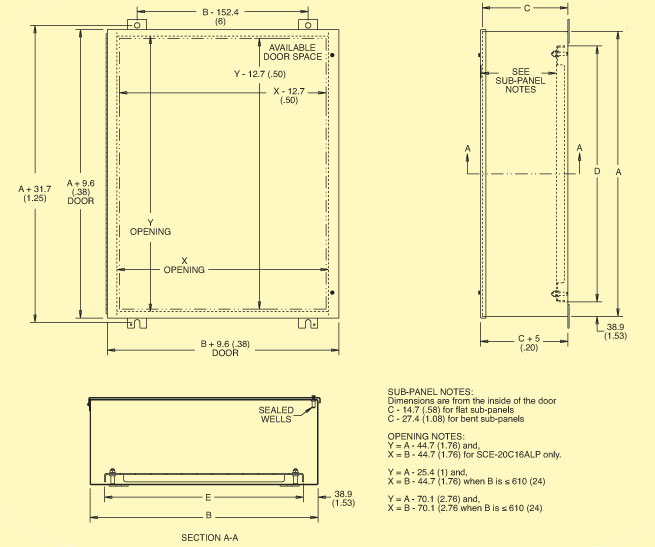

SCE_LgContHinge Series Dimensional Diagram

SCE_LgContHinge Series Dimensional Diagram

注文する（部品番号ビルダーより掲載以外の製品もご選択いただけます）(注文数を入力の上、"カートに追加"をクリックしてください)

他のお客様はこのような商品も購入しています。: このアイコンをクリックすると、このモデルを購入した他のお客様の購入商品リストが表示されます.

部品番号/Desc.

注文数

商品説明

ENCLOSURES

SCE-20C16ALP

お問い合せ下さい

納期:

Enclosures, Height=20.00 Width=16.00 Depth=7.00

SCE-20C16BLP

お問い合せ下さい

納期:

Enclosures, Height=20.00 Width=16.00 Depth=9.00

SCE-20C20ALP

お問い合せ下さい

納期:

Enclosures, Height=20.00 Width=20.00 Depth=7.00

SCE-20C20BLP

お問い合せ下さい

納期:

Enclosures, Height=20.00 Width=20.00 Depth=9.00

SCE-24C20ALP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=20.00 Depth=7.00

SCE-24C20BLP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=20.00 Depth=9.00

SCE-24C24ALP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=24.00 Depth=7.00

SCE-24C24BLP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=24.00 Depth=9.00

SCE-24C24CLP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=24.00 Depth=11.00

SCE-30C20ALP

お問い合せ下さい

納期:

Enclosures, Height=30.00 Width=20.00 Depth=7.00

SCE-30C20BLP

お問い合せ下さい

納期:

Enclosures, Height=30.00 Width=20.00 Depth=9.00

SCE-30C24ALP

お問い合せ下さい

納期:

Enclosures, Height=24.00 Width=20.00 Depth=7.00

SCE-30C24BLP

お問い合せ下さい

納期:

Enclosures, Height=30.00 Width=24.00 Depth=9.00

SCE-30C24DLP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=24.00 Depth=13.00

SCE-36C24ALP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=24.00 Depth=7.00

SCE-36C24BLP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=24.00 Depth=9.00

SCE-36C24CLP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=24.00 Depth=11.00

SCE-36C30BLP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=30.00 Depth=9.00

SCE-36C30DLP

お問い合せ下さい

納期:

Enclosures, Height=36.00 Width=30.00 Depth=13.00

SCE-48C36CLP

お問い合せ下さい

納期:

Enclosures, Height=48.00 Width=36.00 Depth=11.00

SUB-PANEL

SCE-20P16

¥17,534 (税込)
(税抜価格 ¥15,940)

納期: 6 週間

Sub-Panel, Height=17.00 Width=13.00

SCE-20P20

¥21,533 (税込)
(税抜価格 ¥19,575)

納期: 2 週間

Sub-Panel, Height=17.00 Width=17.0

SCE-24P20

¥25,940 (税込)
(税抜価格 ¥23,582)

納期: 6 週間

Sub-Panel, Height=21.00 Width=17.00

SCE-24P24

¥28,488 (税込)
(税抜価格 ¥25,898)

納期: 2 週間

Sub-Panel, Height=21.00 Width=21.00

SCE-30P20

¥32,910 (税込)
(税抜価格 ¥29,918)

納期: 6 週間

Sub-Panel, Height=27.00 Width=17.00

SCE-30P24

¥33,050 (税込)
(税抜価格 ¥30,046)

納期: 2 週間

Sub-Panel, Height=27.00 Width=21.00

SCE-36P24

¥41,602 (税込)
(税抜価格 ¥37,820)

納期: 6 週間

Sub-Panel, Height=33.00 Width=21.00

SCE-36P30

¥55,622 (税込)
(税抜価格 ¥50,565)

納期: 6 週間

Sub-Panel, Height=33.00 Width=27.00

SCE-48P36

¥79,301 (税込)
(税抜価格 ¥72,092)

納期: 4 週間

Sub-Panel, Height=45.00 Width=33.00

ACCESSORIES

Swing Out Panel Kits for NEMA Type 12 Enclosures - allows installation of sub-panels in front of enclosure with swing out access. more info

SCE-NADFK

¥23,630 (税込)
(税抜価格 ¥21,482)

納期: 4 週間

Swing Out Panel Kits for enclosure sub-panels 30' or less.

SCE-NADFK-3

¥30,785 (税込)
(税抜価格 ¥27,986)

納期: 4 週間

Swing Out Panel Kits for enclosure sub-panels larger than 30'.
