NEMA Type 4 Enclosures for Flange-Mounted Electrical Disconnects

SCE-HS Series Electrical Disconnect Enclosure

NEMA Type 4 Single-Door Enclosures for Flange-Mounted Electrical  Disconnects | SCE-HS Series Electrical Disconnect Enclosure

¥108,086 SCE-24HS2108LP

  • 0.075" Carbon Steel
  • Seams Continuously Welded and Ground Smooth
  • Continuous Hinge With Stainless Steel Hinge Pin
  • Stainless Steel Clamps On 3 Sides of Door
  • Flange Trough Collar Around All Sides of Door Opening
  • Interior Print Pocket
  • Collar Studs Provided for Mounting Optional Panels
  • Oil-Resistant Gasket
  • Disconnect Cutout Provided on Flange
  • Ground Stud On Door
  • No Door Stiffener Required
  • Disconnect Switch (or Circuit Breaker) and Operating Mechanism Are Not Furnished with This Enclosure
NEMA規格 筐体 - 関連する商品を探す
(見つからない場合はカスタマーサービスにご連絡ください)

商品説明

Application
SCE-HS SERIES DISCONNECT ENCLOSURE TYPE E
Designed to house most standard type disconnects. For outdoor application a drip shield is recommended.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12 & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66

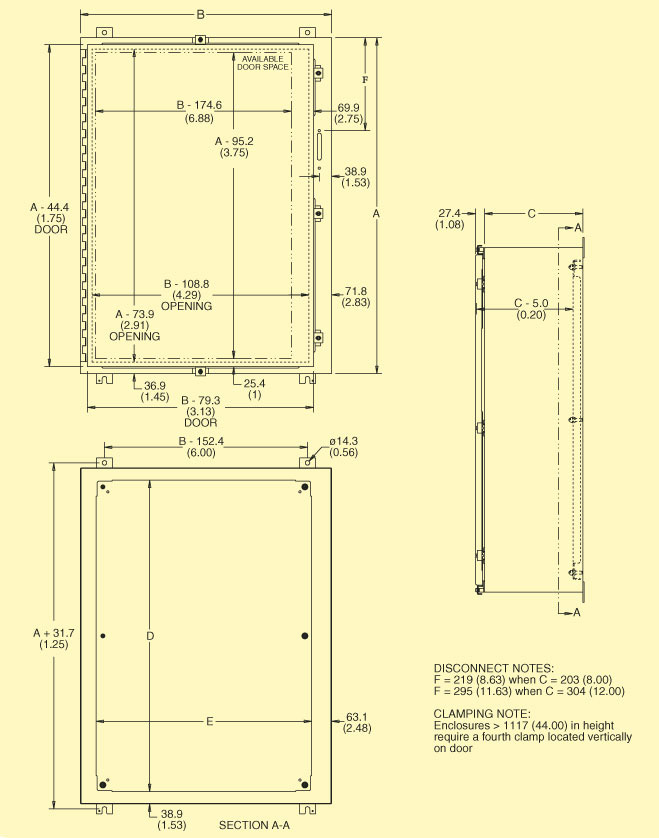

SCE_HS Series Diagram
注文する (部品番号ビルダーより掲載以外の製品もご選択いただけます)(注文数を入力の上、"カートに追加"をクリックしてください)
部品番号/Desc.
注文数
商品説明
Electrical Disconnect Enclosures - sub-panels and disconnects sold separately
Quick Ship
SCE-24HS2108LP
¥118,895 (税込)
(税抜価格 ¥108,086)
納期: 4 週間

24"H x 21.38"W x 8"D
Quick Ship
SCE-24P20
¥13,686 (税込)
(税抜価格 ¥12,442)
納期: 2 週間

Sub-panel for 24x21

Quick Ship
SCE-24HS2508LP
¥129,160 (税込)
(税抜価格 ¥117,418)
納期: 4 週間

24"H x 25.38"W x 8"D
Quick Ship
SCE-24P24
¥16,251 (税込)
(税抜価格 ¥14,774)
納期: 2 週間

Sub-panel for 24x25

Enclosures below must ship by Truck Freight

Quick Ship
SCE-30HS2508LP
¥142,560 (税込)
(税抜価格 ¥129,600)
納期: 4 週間

304"H x 25.38"W x 8"D
Quick Ship
SCE-30P24
¥19,674 (税込)
(税抜価格 ¥17,885)
納期: 4 週間

Sub-panel for 30x25

Quick Ship
SCE-36HS2508LP
¥157,101 (税込)
(税抜価格 ¥142,819)
納期: 4 週間

36"H x 25.38"W x 8"D
Quick Ship
SCE-36P24
¥23,665 (税込)
(税抜価格 ¥21,514)
納期: 4 週間

Sub-panel for 36x25

Quick Ship
SCE-36HS3108LP
¥176,205 (税込)
(税抜価格 ¥160,186)
納期: 4 週間

36"H x 31.38"W x 8"D
Quick Ship
SCE-36HS3112LP
¥195,307 (税込)
(税抜価格 ¥177,552)
納期: 4 週間

36"H x 31.38"W x 12"D
Quick Ship
SCE-36P30
¥31,648 (税込)
(税抜価格 ¥28,771)
納期: 4 週間

Sub-panel for 36x31

Quick Ship
SCE-42HS3112LP
¥214,410 (税込)
(税抜価格 ¥194,918)
納期: 4 週間

42"H x 31.38"W x 12"D
Quick Ship
SCE-42P30
¥36,210 (税込)
(税抜価格 ¥32,918)
納期: 4 週間

Sub-panel for 42x31

Quick Ship
SCE-42HS3712LP
¥239,216 (税込)
(税抜価格 ¥217,469)
納期: 4 週間

42"H x 37.38"W x 12"D
Quick Ship
SCE-42P36
¥42,768 (税込)
(税抜価格 ¥38,880)
納期: 6 週間

Sub-panel for 42x37

Quick Ship
SCE-48HS3712LP
¥260,029 (税込)
(税抜価格 ¥236,390)
納期: 4 週間

48"H x 37.38"W x 12"D
Quick Ship
SCE-48P36
¥48,186 (税込)
(税抜価格 ¥43,805)
納期: 4 週間

Sub-panel for 48x37

Quick Ship
SCE-60HS3712LP
¥302,512 (税込)
(税抜価格 ¥275,011)
納期: 4 週間

60"H x 37.38"W x 12"D
Quick Ship
SCE-60P36
¥59,305 (税込)
(税抜価格 ¥53,914)
納期: 4 週間

Sub-panel for 60x37

Drip Shield Kit - includes SS screws and sealing washers
Quick Ship
SCE-DS20N4
¥12,261 (税込)
(税抜価格 ¥11,146)
納期: 4 週間

for 21" wide electrical enclosures
Quick Ship
SCE-DS24N4
¥14,826 (税込)
(税抜価格 ¥13,478)
納期: 4 週間

for 25" wide electrical enclosures
Quick Ship
SCE-DS30N4
¥15,397 (税込)
(税抜価格 ¥13,997)
納期: 2 週間

for 31" wide electrical enclosures
Quick Ship
SCE-DS36N4
¥15,967 (税込)
(税抜価格 ¥14,515)
納期: 4 週間

for 37" wide electrical enclosures
Ordering Example: (1) SCE - 24HS2108LP  Enclosure, Height=24 inches, W=21.38 inches, Depth=8 inches, ¥108,086
