NEMA Type 3R & 12 Free-Standing, Two-Door Dual-Access Electrical Enclosures and Cabinets - Sizes from 72x48 to 90x72"

SCE-FSDAD Series Indoor/Outdoor Electrical Enclosures

NEMA Type 3R & 12 Free-Standing, Two-Door Dual-Access Indoor/Outdoor Electrical Enclosures and Control Panels by Saginaw Control | SCE-FSDAD Series Indoor/Outdoor Electrical Enclosures

¥551,318 SCE-724824FSDAD

1 year warranty RoHS
  • 0.104" Carbon Steel
  • Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
  • Strong, Rigid Construction
  • Lifting Eyes for Easy Handling
  • Black Zinc Die Cast Keylocking/Padlocking Handle
  • 3-Point Latching Mechanism
  • Latch Rods Have Rollers for Easier Door Closing
  • Concealed Hinge
  • Flange Trough Collar Around All Sides of Door Opening
  • Removable Print Pocket Provided On Door With 3-Point Latch
  • Mounting Channels Welded Horizontally On Sides of Interior Body At Top, Bottom and Middle For Mounting Optional Panels or Rack Mounting Angles
  • Oil Resistant Gasket
  • Removable and Interchangeable Doors
  • Ground Stud on Door
NEMA規格 筐体 - 関連する商品を探す
(見つからない場合はカスタマーサービスにご連絡ください)

商品説明

Application
The SCE-FSDAD Series indoor/outdoor electrical enclosures are designed to house electrical and electronic controls, instruments and equipment in areas which may be regularly hosed down or are in very wet conditions. These electrical control panels provide protection from dust, dirt, oil and water. This outdoor electrical control panel is the solution for waterproof and weatherproof applications. The enclosures are extra deep with front and rear access for applications requiring more interior space and have provisions for optional surface mounting or rack mounting of almost any type of equipment.
by Saginaw Control
Finish
White powder coating inside and ANSI-61 recoatable gray finish outside over phosphatized surfaces. Optional panels are powder coated white.

Industry Standard IS3
NEMA Type 3R, 12 & Type 13
UL Listed Type 3R, 12
CSA TYpe 3R, 12
IEC 60529 IP 55

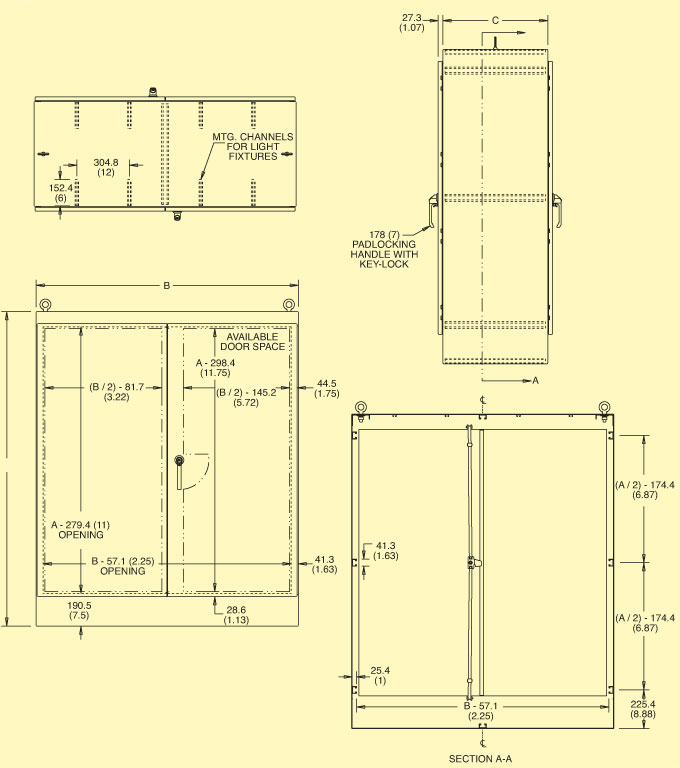

SCE_FSDAD Series Dimensions Diagram
注文する (部品番号ビルダーより掲載以外の製品もご選択いただけます)(注文数を入力の上、"カートに追加"をクリックしてください)
部品番号/Desc.
注文数
RoHS
商品説明
Dual Access Metal Electrical Enclosures for Indoor & Outdoor Applications - Drip Shield required for NEMA 3R Rating

Must Ship LTL Truck Freight

Quick Ship
SCE-724824FSDAD
¥551,318
納期: 4 週間
RoHS compliant
NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 48"W, 24"D
Quick Ship
SCE-72P48F1
¥104,198
納期: 4 週間
RoHS compliancy undetermined
Full sub-panel for 72 x 48 electrical enclosure
Quick Ship
SCE-72P48F2
¥66,874
納期: 4 週間
RoHS compliancy undetermined
Half sub-panel for 72 x 48 electrical enclosure

Quick Ship
SCE-726024FSDAD
¥619,488
納期: 4 週間
RoHS compliant
NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 60"W, 24"D
Quick Ship
SCE-726036FSDAD
¥712,800
納期: 4 週間
RoHS compliant
NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 60"W, 36"D
Quick Ship
SCE-72P60F1
¥121,565
納期: 4 週間
RoHS compliancy undetermined
Full sub-panel for 72 x 60 electrical enclosure
Quick Ship
SCE-72P60F2
¥76,205
納期: 4 週間
RoHS compliancy undetermined
Half sub-panel for 72 x 60 electrical enclosure

Quick Ship
SCE-727224FSDAD
¥687,398
納期: 4 週間
RoHS compliant
NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 72"W, 24"D
Quick Ship
SCE-72P72F1
¥137,376
納期: 4 週間
RoHS compliancy undetermined
Full sub-panel for 72 x 72 electrical enclosure
Quick Ship
SCE-72P72F2
¥83,981
納期: 4 週間
RoHS compliancy undetermined
Half sub-panel for 72 x 72 electrical enclosure

Quick Ship
SCE-907224FSDAD
¥789,264
納期: 4 週間
RoHS compliant
NEMA Type 12 free-standing single-door electrical enclosure, 90"H, 72"W, 24"D
Quick Ship
SCE-90P72F1
¥165,629
納期: 4 週間
RoHS compliancy undetermined
Full sub-panel for 90 x 72 electrical enclosure
Quick Ship
SCE-90P72F2
¥98,755
納期: 4 週間
RoHS compliancy undetermined
Half sub-panel for 90 x 72 electrical enclosure

Drip Shields - Required for NEMA 3R Rating
Quick Ship
SCE-DS48N4
¥17,626
納期: 4 週間
RoHS compliancy undetermined
Drip shield for 48" wide electrical enclosure
Quick Ship
SCE-DS60N4
¥20,477
納期: 4 週間
RoHS compliancy undetermined
Drip shield for 60" wide electrical enclosure
Quick Ship
SCE-DS72N4
¥23,069
納期: 4 週間
RoHS compliancy undetermined
Drip shield for 72" wide electrical enclosure
このサイトの金額はすべて日本円(税抜)で表示しています
Ordering Example: (1) SCE - 724824FSDAD Type 12 Free - Standing Two - Door Dual - Access Carbon Steel Enclosure, ¥551,318
